    SWT-PH5000 CNC Plastic Sheet Welding Machine For Making PE Tanks

    Ask Lasest Price
    Brand Name : MM-TECH
    Model Number : SWT-PH5000
    Certification : CE
    Price : US$22,000-US$27,200/set
    Payment Terms : L/C, D/A, D/P, Western Union, T/T, PayPal
    Delivery Time : Within 7 days
    • Product Details
    • Company Profile

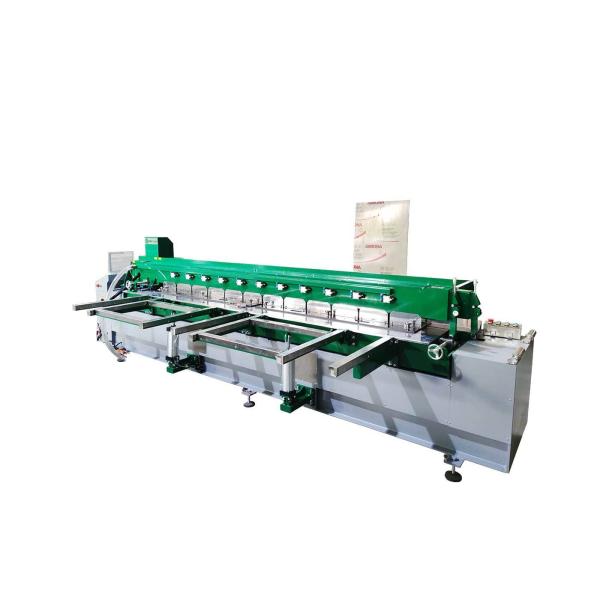

    SWT-PH5000 CNC Plastic Sheet Welding Machine For Making PE Tanks

    SWT-PH5000 CNC Sheet Butt Fusion Welding Machine for Making PE Tanks


    Sheet Butt Fusion Welding Machine Introduction

    • SWT-PH5000 CNC Sheet Butt Fusion Welding Machine equipped with automatic winding device mechanism.
    • This machine can weld PP, PE, PVDF, PVC, PPN and other thernoplastic material.
    • It can be customized per customers' request.
    • Arrange of Application: electroplasting system, environment protection equipment, chemical containers, sewage treatment, piping, ventilation systems and other industries.

    Sheet Butt Fusion Welding Machine Technical Sheet


    ModelSWT-PH5000
    Welding Thickness(mm)3.0-30.0
    Max. Woking Length(mm)5000
    Roll Circle Min Diameter(mm)550
    Air Pressure(kg.f / cm²)6.0-8.0
    Energy Source(m³ / min)0.0068
    Rated Voltage(V)380V, 50/60Hz
    Rated Current(A)13.6A
    Heating Power(kW)10kW
    Power of Rolling Power(kW)1.5kW
    Heating ModeOverall Heating
    Drum Institutions(parts)Optional
    Machine Size(L×W×H)mm5850*1200*1200
    PacKING Size(L×W×H)mm6000*1300*1450
    N.W KGS1800KG
    G.W KGS1950KG

    Sheet Butt Fusion Welding Machine Application


    SWT-PH5000 CNC Plastic Sheet Welding Machine For Making PE TanksSWT-PH5000 CNC Plastic Sheet Welding Machine For Making PE TanksSWT-PH5000 CNC Plastic Sheet Welding Machine For Making PE TanksSWT-PH5000 CNC Plastic Sheet Welding Machine For Making PE Tanks


    FAQ


    Payment MethodBank Transfer, PayPay, WesternUnion
    Quality Guarantee2 years
