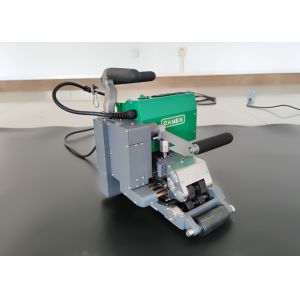

Hot Wedge Machine CX600
The CX600 has a power of 2100W and a weight of 11.5kg. The main
frame of this machine, the material used is aviation aluminum, the
characteristics of this material, light weight, high strength, no
deformation, and we use the die casting process, (not foundry die
casting), is open steel mold, the use of 1500 tons of die casting
machine die casting molding, after forming, the surface is painted
treatment, spray paint after processing.
Parameter Specification
Input voltage | 220V, 50Hz |
Power | 2100W |
Welding speed | 0-8m/min |
Heating temperature | 0-450℃ |
Welding material thickness | 0.8-4.0mm |
Welding seam width | 16mm×2, inner cavity 16mm |
Welding seam strength | ≥85% of original material |
Overlap width | 120mm |
Net weight | 11.5kg |
| Gross weight | 16.5kg |
Application
The Hot Wedge Machine CX600 is commonly used in multiple fields. In
civil engineering, it is essential for constructing roads,
railways, airports, etc., providing reliable welding to ensure the
stability and waterproofing of pond liner.
For water conservancy projects, it helps in building canals,
reservoirs and other hydraulic structures, preventing water
leakage. In the environmental protection field, it is widely used
in landfill sites to prevent pollutants from seeping into the soil
and groundwater.
In mining, it offers an effective solution for welding geomembrane
in mines and tailings ponds, ensuring safety.
Additionally, it serves well in agriculture for constructing
irrigation systems and ponds. Its efficient and high - quality
welding plays a significant role in the success of various
projects.
Product Feature
Main Frame Design
The main frame is made of aviation aluminum, die-cast, and painted
on the surface, which is light and strong.
Precision Bearings
The bearing position and screw holes are CNC machined, using
Japanese IKO needle roller bearings and German NSK deep groove ball
bearings.
Liquid Crystal Display Screen
The temperature and speed are controlled by computer chip
programming, and the LCD screen digitally displays the temperature
and speed.
Pressure Adjustment
The double handle design is ergonomic, and the pressure nut is
equipped with a high-strength spring for easy adjustment.
Hot Wedge
The hot wedge cutter is available in copper and brass. The curved
pipe design is waterproof, and the fixing screws are filled with
silicone shields.
FAQ
How About The Delivery Time?
Approximately within 10-14 days after received your payment.
Can I Get A Sample From Your Company? Should I Pay For The Express
Fee?
We can offer free sample to you.After confirming your order, the
sample's freight cost wil be deducted from your order's total cost.
What Are The Use Scenarios Of Geomembrane?
Water conservation engineering, municipal engineering, mining,
fishery, agriculture, environmental protection,etc.
How Can I Pay?
You can pay by credit card, wire transfer, western union, and
paypal, etc.
How To Ship The Machines?
Normally we ship the goods through express such as DHL, FEDEX, UPS.
Do You Test All Items Before Shipping?
Yes, we have passed 100% testing before delivery.
How To Guarantee The Quality?
Warranty is 5 years, if there are any quality problems, we accept
return or give spare parts for free.
